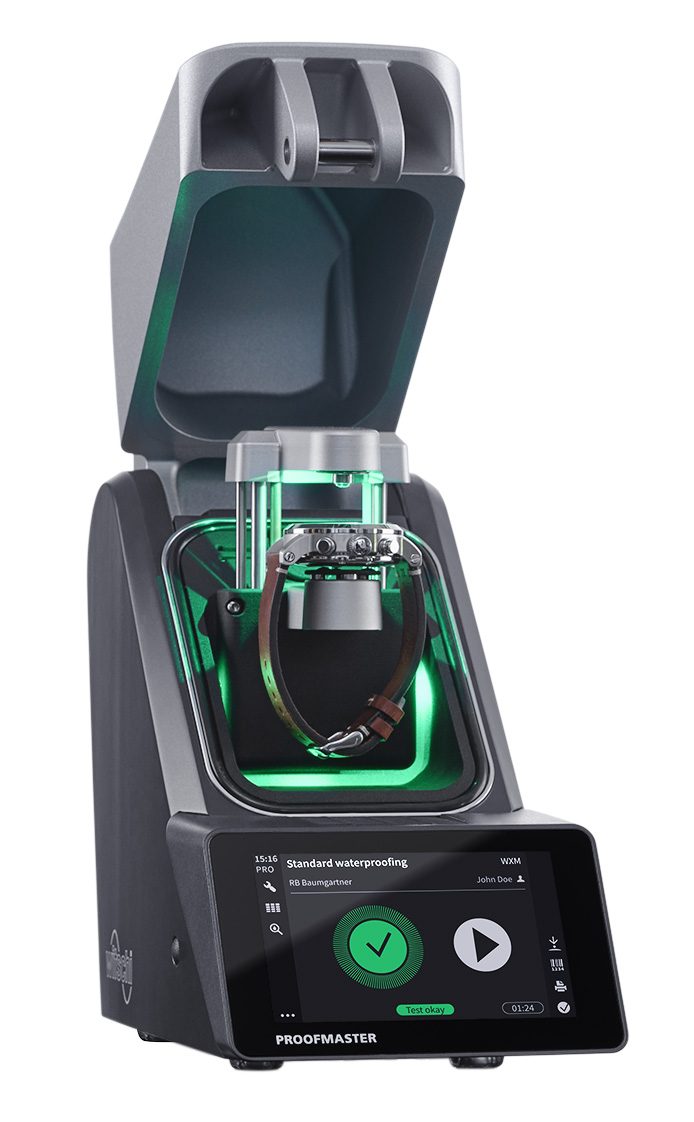

Witschi Proofmaster CP

The Witschi Proofmaster CP is a waterproof tester (tests up to 5 bar) with an internal compressor. The ProofMaster CP does not need a compressed air supply thanks to its integrated compressor. The smart test programs, automatic test chamber, and sensor actuation guarantee that all tightness tests can be carried out without a hitch. The high-performance testing algorithm delivers high precision and reliability.

$5,595.00

SKU 590.722

The ProofMaster CP checks the tightness of watches conveniently with a fully automatic locking and testing process. With its ease of use, the ProofMaster CP is the ideal leak test device for watch service, watch retail, watch production and watch laboratories. The new ProofMaster generation is more compact, faster, and more precise Its genes are the latest technology and intelligent algorithms. Based on many years of experience, a device was created that is characterized by the simplest operation. It impresses with the reliable and fast leak test, the small space requirement, the optimal protection of the watch against scratches, and the ergonomic design.

How to Use

A complete testing solution: connect your ChronoMaster to the ProofMaster to analyze rate deviation, beat error, and amplitude directly on your screen, and with the ChronoMaster Air, the process is wireless too. This enables you to deliver comprehensive watch testing with ease at your business. The ProofMaster CP can work alone or connected directly to a WiCoTRACE database. WiCoTRACE provides additional analysis and export features as well as professional local and central results management.

Size: 149 x 243 x 305 mm equivalent to 5.8 inches x 9.5 inches x 12.0 inches
Weight: 6.3 kg equivalent to 13.8 pounds
Integrated quiet and high-performance compressor up to 5 bar and -0.5 bar vacuum
Intuitive user interface with a 5-inch touchscreen
Increased productivity thanks to a fast measurement algorithm
Automatic sensor input and test chamber closure and locking
ScratchProtect: adjustable watch support for efficient protection against scratches
Increased measurement robustness with shock and vibration detection
4 universal test programs with on/off switchable vacuum test
Display of rate, beat error, and amplitude when connected to a ChronoMaster or a ChronoMaster Air
